RVT-Connect : The best way to create floor plans from REVIT, ready to use by the MEP team.

The RVT-Connect tool ribbon installs in REVIT where it helps you list, manage and export .DWG floor plans of the model quickly and clearly.

The files will be named and ready to use by the MEP team that uses AUTOFLUID for designing high quality network plans.

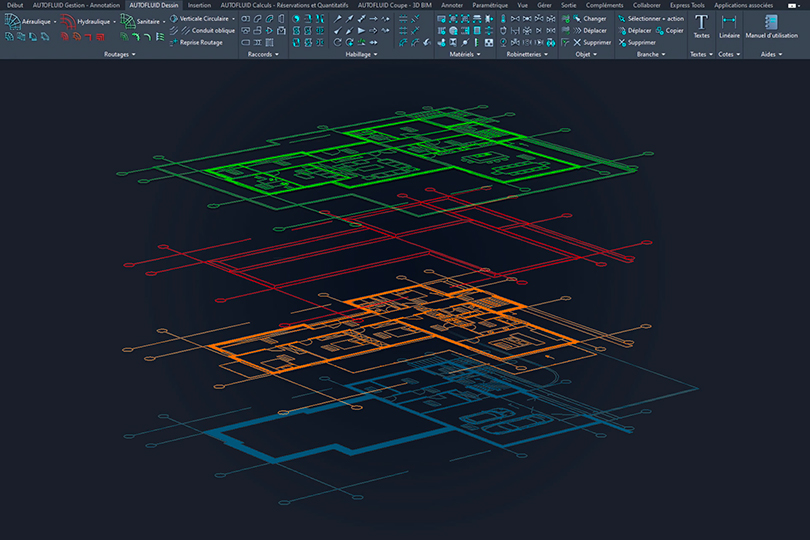

Along the way, RVT-Connect can export the building’s levels data from the REVIT model to automatically setup the project in AUTOFLUID. You can then calculate pressure loss across several floors, generate cross sections from 2D or model your networks in 3D automatically even faster.

If the HVAC/plumbing networks were modelled in 3D using AUTOFLUID you can even insert them back into the REVIT model using RVT-Connect to position them correctly in the building with no effort.

Ask for your free RVT-Connect download link here

Discover AUTOFLUID, the leading MEP and plumbing 2D-3D design software.

Would you like to find out more? Book a free demonstration now.
